738-316 | WAGO

PCB terminal, 64 pole, pitch 5.08 mm, AWG 28-12, 18 A, cage clamp, orange, 738-316

Order No.: 44P4606
EAN: 4045454161224
MPN:
738-316
Series: 738

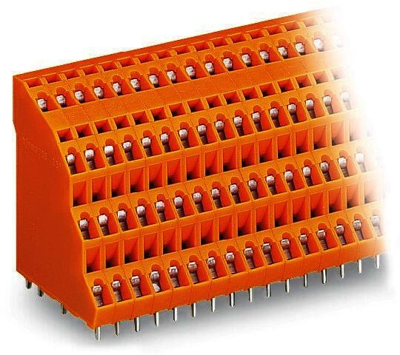

738-316 WAGO PCB Terminal Blocks Image 1

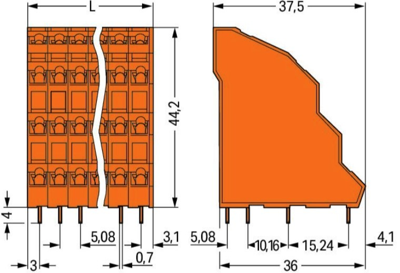

738-316 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
33.1891 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
33.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.1891 €

Quadruple-deck PCB terminal block, 738-316, Wago

Four-level terminal strip 4 solder pins in row 16x4-pole Spacing 5.08 mm / 0.2 in orange

Technical specifications
Filter Property Value
Pin number 64 pole
Grid 5.08 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 5.08/10.16/15.24
Rated current 18 A
Rated voltage 320 V
Width 82.28 mm
Height 48.2 mm
Depth 37.5 mm
Connection cage clamp
Assembly THT
Colour orange
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
