738-308 | WAGO

PCB terminal, 32 pole, pitch 5.08 mm, AWG 28-12, 18 A, cage clamp, orange, 738-308

Order No.: 44P4604
EAN: 4045454161194
MPN:
738-308
Series: 738

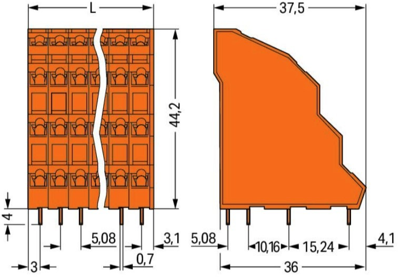

738-308 WAGO PCB Terminal Blocks Image 1

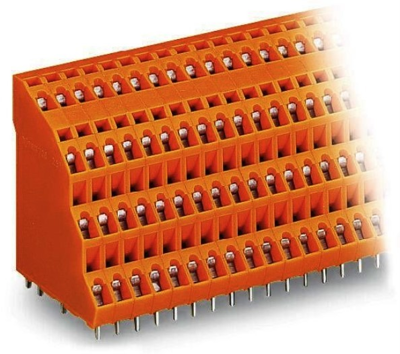

738-308 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
16.9694 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
16.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.9694 €

Quadruple-deck PCB terminal block, 738-308, Wago

four-level terminal strip 4 solder pins in row 8x4-pole grid dimension 5.08 mm / 0.2 in orange

Technical specifications
Filter Property Value
Rated current 18 A
Colour orange
Contact distance RM 5.08/10.16/15.24
Width 41.64 mm
Depth 37.5 mm
Connection cage clamp
Height 48.2 mm
AWG cross-section AWG 28-12
Grid 5.08 mm
Rated voltage 320 V
Pin number 32 pole
Cable cross-section 0.08-2.5 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
