737-416 | WAGO
PCB terminal, 48 pole, pitch 5.08 mm, AWG 28-12, 21 A, cage clamp, orange, 737-416
Unit Price (€ / pc.)
23.919 € *
Standard delivery time from the manufacturer is: 4 Weeks

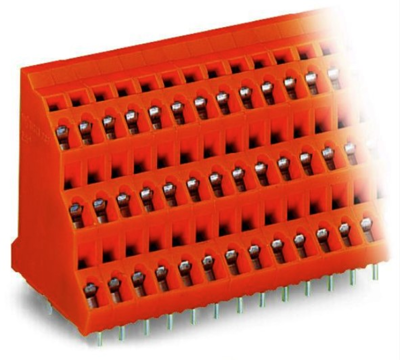

Triple-deck PCB terminal block, 737-416, Wago
Three-level terminal block solder pins for level 2 shifted by 1/2 pitch 16x3-pole pitch 5.08 mm / 0.2 in orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 48 pole | |
| Grid | 5.08 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| AWG cross-section | AWG 28-12 | |
| Contact distance | RM 5.08/10/15 | |
| Rated current | 21 A | |
| Rated voltage | 320 V | |

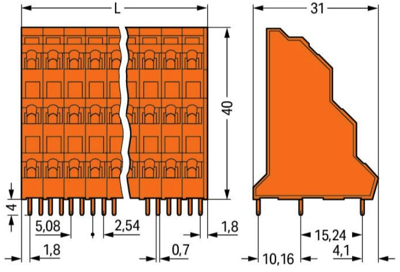

| Width | 82.28 mm | |
| Height | 44 mm | |
| Depth | 31 mm | |
| Connection | cage clamp | |
| Assembly | THT | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
