737-416/000-004 | WAGO

PCB terminal, 48 pole, pitch 5.08 mm, AWG 28-12, 21 A, cage clamp, black, 737-416/000-004

Order No.: 44P4529
EAN: 4055143672801
MPN:
737-416/000-004
Series: 737
737-416/000-004 WAGO PCB Terminal Blocks Image 1
737-416/000-004 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
26.3347 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
26.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.3347 €

PCB terminal, 737-416/000-004, WAGO

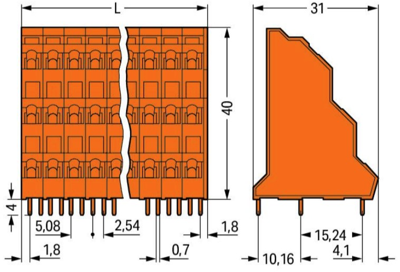

Triple-deck PCB terminal block, 2.5 mm², pin spacing: 5.08 mm, 48-pole, CAGE CLAMP, 2.50 mm², black.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • High-density, triple-deck design for space-efficient wiring of multiple conductors in confined areas
Technical specifications
Filter Property Value
Colour black
Depth 31 mm
AWG cross-section AWG 28-12
Rated current 21 A
Grid 5.08 mm
Width 82.28 mm
Height 44 mm
Contact distance RM 5.08/10/15
Cable cross-section 0.08-2.5 mm²
Pin number 48 pole
Connection cage clamp
Rated voltage 320 V
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
