737-412 | WAGO

PCB terminal, 36 pole, pitch 5.08 mm, AWG 28-12, 21 A, cage clamp, orange, 737-412

Order No.: 44P4527
EAN: 4045454023126
MPN:
737-412
Series: 737

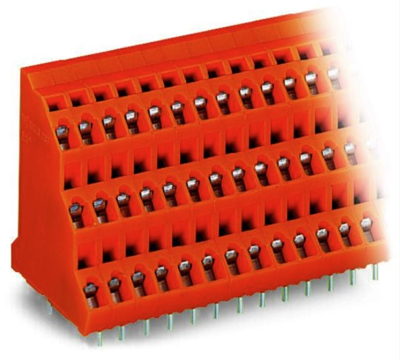

737-412 WAGO PCB Terminal Blocks Image 1

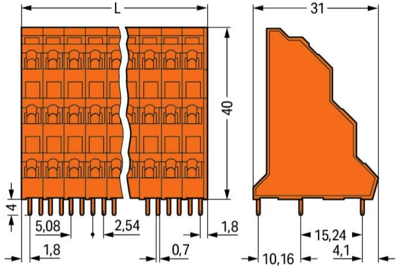

737-412 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
18.1356 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
18.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.1356 €

Triple-deck PCB terminal block, 737-412, Wago

Three-level terminal block solder pins for floor 2 shifted by 1/2 pitch 12x3 poles pitch 5.08 mm / 0.2 in orange

Technical specifications
Filter Property Value
Pin number 36 pole
Grid 5.08 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 5.08/10/15
Rated current 21 A
Rated voltage 320 V
Width 61.96 mm
Height 44 mm
Depth 31 mm
Connection cage clamp
Assembly THT
Colour orange
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
