736-758 | WAGO

PCB terminal, 16 pole, pitch 10 mm, AWG 28-12, 21 A, cage clamp, gray, 736-758

Order No.: 44P4484
EAN: 4044918911177
MPN:
736-758
Series: 736
736-758 WAGO PCB Terminal Blocks Image 1
736-758 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
8.9012 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
8.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.9012 €

PCB terminal, 736-758, WAGO

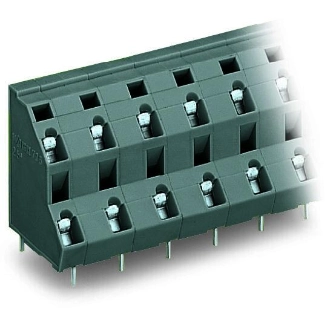

Double-deck PCB terminal block, 2.5 mm², pin spacing: 10 mm, 16-pole, CAGE CLAMP, 2.50 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
Technical specifications
Filter Property Value
Pin number 16 pole
Grid 10 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 10/15
Rated current 21 A
Rated voltage 1 kV

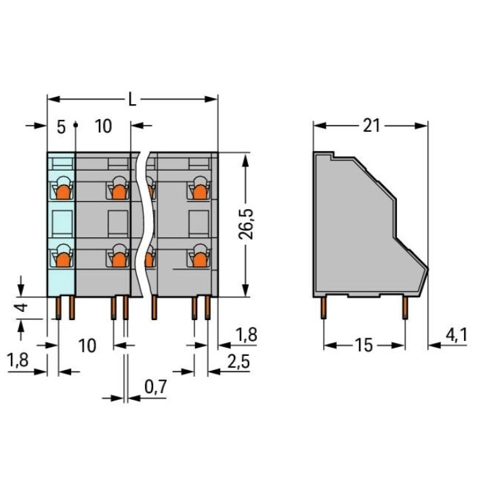

Width 76 mm
Height 30.5 mm
Depth 21 mm
Connection cage clamp
Assembly THT
Colour gray
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
