736-124 | WAGO

PCB terminal, 48 pole, pitch 5 mm, AWG 28-12, 21 A, cage clamp, gray, 736-124

Order No.: 44P4426
EAN: 4044918909051
MPN:
736-124
Series: 736
736-124 WAGO PCB Terminal Blocks Image 1
736-124 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
22.5267 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
22.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.5267 €

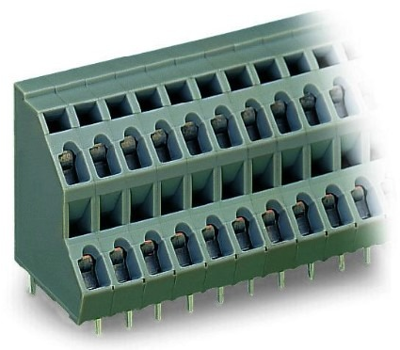

PCB terminal, 736-124, WAGO

Double-deck PCB terminal block, 2.5 mm², pin spacing: 5 mm, 48-pole, CAGE CLAMP, 2.50 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas

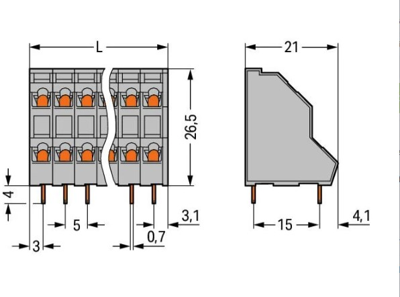

Technical specifications
Filter Property Value
Width 121 mm
Grid 5 mm
AWG cross-section AWG 28-12
Rated current 21 A
Rated voltage 320 V
Cable cross-section 0.08-2.5 mm²
Colour gray
Pin number 48 pole
Assembly THT
Height 30.5 mm
Depth 21 mm
Connection cage clamp
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
