736-102 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 28-12, 21 A, cage clamp, gray, 736-102
Unit Price (€ / pc.)
3.5462 € *
Available: 36 pcs.
Total Price:
3.55 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5462 €
10 pcs.
3.2606 €
50 pcs.
2.9631 €
100 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 736-102, WAGO

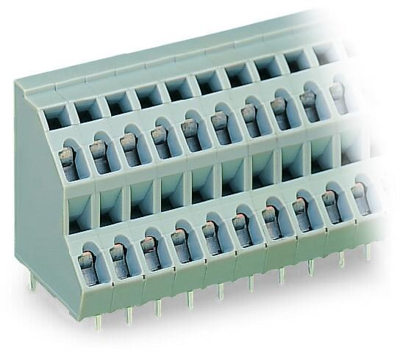

Double-deck PCB terminal block, 2.5 mm², pin spacing: 5 mm, 4-pole, cage clamp, 2.50 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated cage clamp connection
- High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
- Overvoltage category: III
- Pollution degree: 2

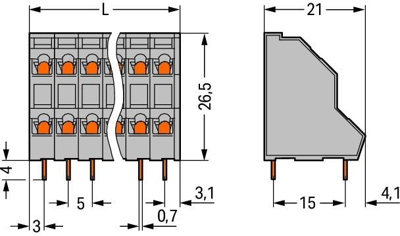

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 21 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 21 A | |
| Height | 30.5 mm | |
| Colour | gray | |
| Assembly | THT | |
| Width | 11 mm | |
| Grid | 5 mm | |
| Rated voltage | 320 V | |
| Connection | cage clamp | |
| Pin number | 4 pole | |
| Cable cross-section | 0.08-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
