2716-102 | WAGO
PCB terminal, 2 pole, pitch 10 mm, AWG 16-6, 76 A, cage clamp, gray, 2716-102
Unit Price (€ / pc.)
3.2011 € *
Available: 53 pcs.

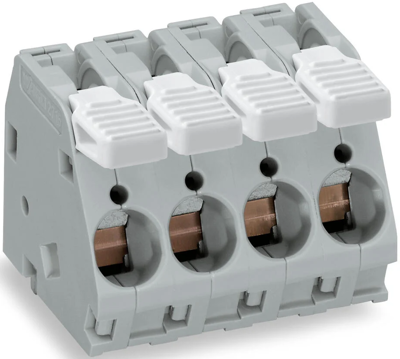

PCB terminal block with integrated pusher, type Wago
High-power terminal blocks with cage clamp terminals, no jumper slot. Several terminals of a block can be held open simultaneously; Thermal resistance: –60 to +105 °C.
10 mm grid, 4 solder pins per terminal.

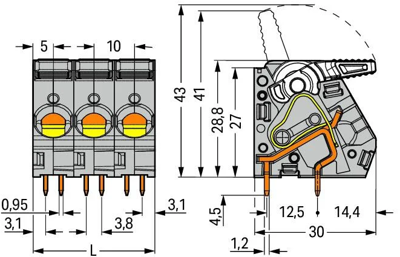

Rated voltage: 320 V. Rated surge voltage: 4.0 kV. Rated current: 76 A. Height: 28.8 mm. Depth: 30 mm.
Type: 2716-102, 2-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Grid | 10 mm | |
| Cable cross-section | 1.5-16 mm² | |
| AWG cross-section | AWG 16-6 | |
| Contact distance | RM 10/12.5 | |
| Rated current | 76 A | |
| Rated voltage | 320 V | |
| Width | 21.5 mm | |
| Height | 33.3 mm | |
| Depth | 30 mm | |
| Connection | cage clamp | |
| Assembly | THT | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
