2706-211/000-016 | WAGO
PCB terminal, 11 pole, pitch 10 mm, AWG 20-10, 41 A, cage clamp, green/yellow/blue/gray, 2706-211/000-016
Unit Price (€ / pc.)
17.0408 € *
Standard delivery time from the manufacturer is: 4 Weeks

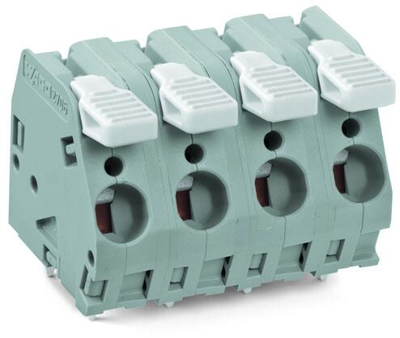

PCB terminal block, 2706-211/000-016, WAGO
PCB terminal block, lever, 6 mm², Pin spacing 10 mm, 11-pole, 6 mm², green-yellow, blue, gray.
Features
- High-current PCB terminal strips with lever-actuated CAGE CLAMP connection
- Tool-free termination – fingers open/close levers
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Two solder pins per contact point for high mechanical stability

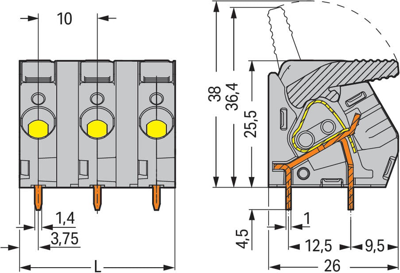

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-10 | |
| Colour | green/yellow/blue/gray | |
| Connection | cage clamp | |
| Rated voltage | 1 kV | |
| Cable cross-section | 0.5-6.0 mm² | |
| Width | 105 mm | |
| Height | 30 mm | |
| Assembly | THT | |
| Depth | 26 mm | |
| Pin number | 11 pole | |
| Grid | 10 mm | |
| Rated current | 41 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
