2636-3352 | WAGO

PCB terminal, 2 pole, pitch 15 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2636-3352

Order No.: 44P9337
EAN: 4066966110043
MPN:
2636-3352
Series: 2636

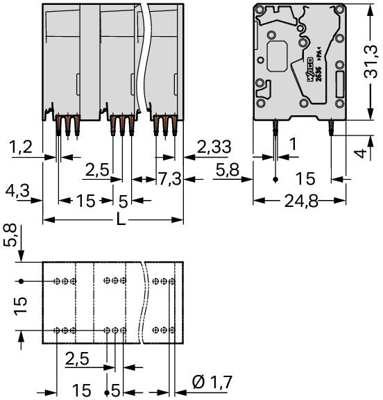

2636-3352 WAGO PCB Terminal Blocks Image 1

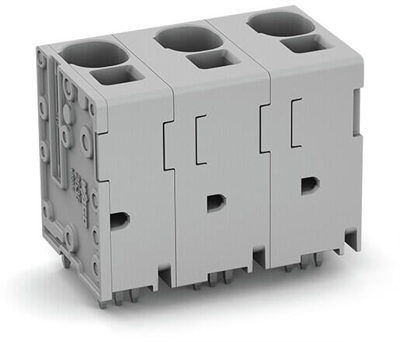

2636-3352 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
7.0210 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.0210 €

PCB terminal block, 2636-3352, WAGO

PCB terminal block, 16 mm², Pin spacing 15 mm, 2-pole, Push-in cage clamp, 16.00 mm², gray.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Filter Property Value
Width 26.6 mm
Grid 15 mm
AWG cross-section AWG 18-4
Rated current 76 A
Rated voltage 1 kV
Cable cross-section 0.75-16 mm²
Colour gray
Pin number 2 pole
Assembly THT
Height 35.3 mm
Depth 24.8 mm
Connection push-in cage clamp
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
