2636-1358 | WAGO

PCB terminal, 8 pole, pitch 15 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2636-1358

Order No.: 44P9348
EAN: 4055143861472
MPN:
2636-1358
Series: 2636

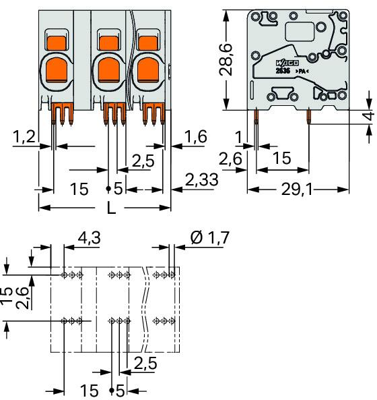

2636-1358 WAGO PCB Terminal Blocks Image 1

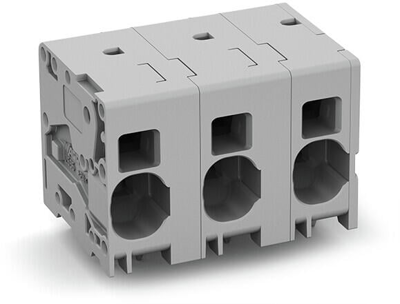

2636-1358 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
28.0721 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
28.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.0721 €

PCB terminal block, 2636-1358, WAGO

PCB terminal block, 16 mm², Pin spacing 15 mm, 8-pole, Push-in cage clamp, 16.00 mm², gray.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Rated voltage 1 kV
Rated current 76 A
Depth 29.1 mm
Connection push-in cage clamp
Cable cross-section 0.75-16 mm²
Height 32.6 mm
Grid 15 mm
Colour gray
Width 116.6 mm
Pin number 8 pole
AWG cross-section AWG 18-4
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
