PCB terminal, 4 pole, pitch 15 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2636-1354

Order No.: 44P9340
EAN: 4055143861380
MPN:
2636-1354
Series: 2636

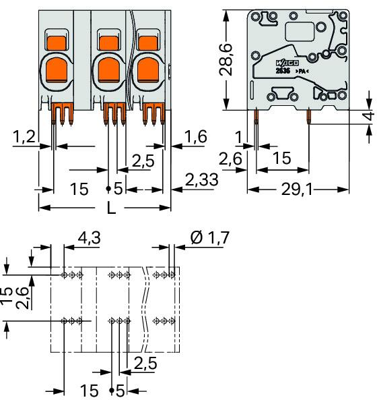

2636-1354 WAGO PCB Terminal Blocks Image 1

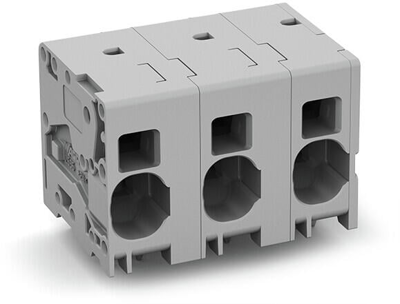

2636-1354 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
14.0420 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
14.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.0420 €

PCB terminal block, 2636-1354, WAGO

PCB terminal block, 16 mm², Pin spacing 15 mm, 4-pole, Push-in cage clamp, 16.00 mm², gray.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Rated voltage 1 kV
Rated current 76 A
Depth 29.1 mm
Connection push-in cage clamp
Cable cross-section 0.75-16 mm²
Height 32.6 mm
Grid 15 mm
Colour gray
Width 56.6 mm
Pin number 4 pole
AWG cross-section AWG 18-4
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
