2636-1102/020-004 | WAGO

PCB terminal, 2 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, black, 2636-1102/020-004

Order No.: 44P9329
EAN: 4055143766005
MPN:
2636-1102/020-004
Series: 2636

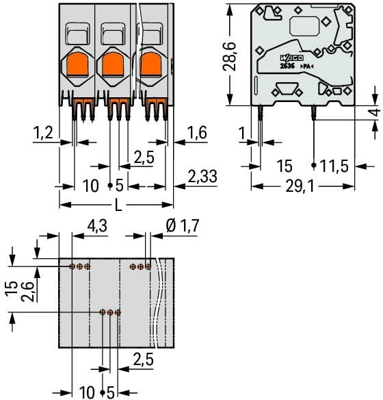

2636-1102/020-004 WAGO PCB Terminal Blocks Image 1

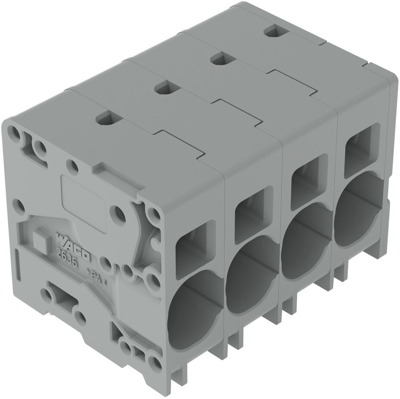

2636-1102/020-004 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.8782 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.8782 €

PCB terminal block, 2636-1102/020-004, WAGO

PCB terminal block, 16 mm², Pin spacing 10 mm, 2-pole, Push-in cage clamp, 16.00 mm², black.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Colour black
Depth 29.1 mm
AWG cross-section AWG 18-4
Rated current 76 A
Grid 10 mm
Width 21.6 mm
Height 32.6 mm
Cable cross-section 0.75-16 mm²
Pin number 2 pole
Connection push-in cage clamp
Rated voltage 1 kV
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
