2626-3359 | WAGO

PCB terminal, 9 pole, pitch 12.5 mm, AWG 24-8, 48 A, push-in cage clamp, gray, 2626-3359

Order No.: 44P9294
EAN: 4055143898027
MPN:
2626-3359
Series: 2626

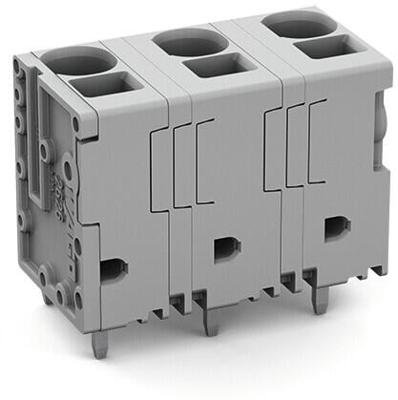

2626-3359 WAGO PCB Terminal Blocks Image 1

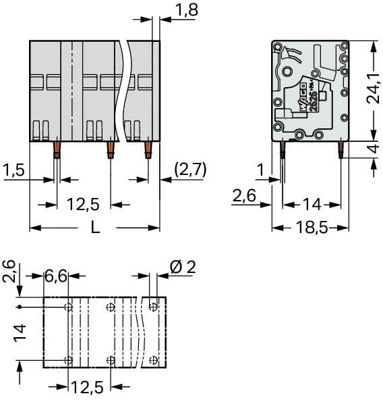

2626-3359 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
17.5644 € *
Available: 0 pcs.
Available in 5 Days: 558 pcs.
Leadtime: 4 Weeks **
Total Price:
17.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.5644 €

PCB terminal block, 2626-3359, WAGO

PCB terminal block, 6 mm², Pin spacing 12.5 mm, 9-pole, Push-in cage clamp, 6.00 mm², gray.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Width 109.3 mm
Cable cross-section 0.2-10 mm²
Depth 18.5 mm
Rated current 48 A
Rated voltage 1 kV
Grid 12.5 mm
AWG cross-section AWG 24-8
Connection push-in cage clamp
Pin number 9 pole
Height 28.2 mm
Colour gray
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
