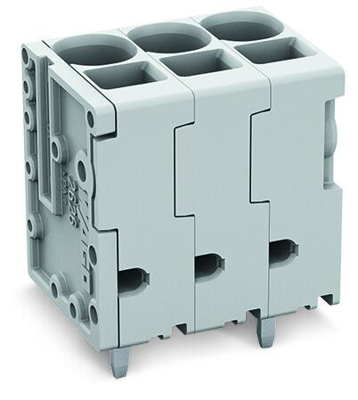

PCB terminal, 3 pole, pitch 7.5 mm, AWG 24-8, 48 A, push-in cage clamp, gray, 2626-3103
Unit Price (€ / pc.)
4.6767 € *
Standard delivery time from the manufacturer is: On Request
PCB terminal block, 2626-3103, WAGO
PCB terminal block, 6 mm², Pin spacing 7.5 mm, 3-pole, Push-in cage clamp, 6.00 mm², gray.
Features
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Testing can be performed both parallel and perpendicular to conductor entry

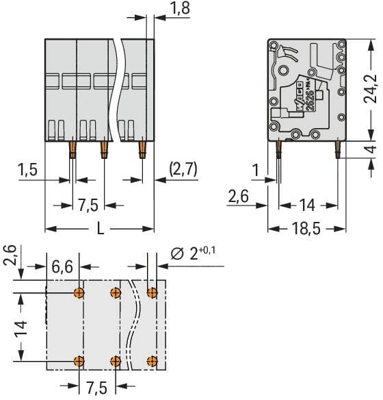

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-8 | |
| Colour | gray | |
| Connection | push-in cage clamp | |
| Rated voltage | 630 V | |
| Cable cross-section | 0.2-10 mm² | |
| Width | 24.3 mm | |
| Height | 28.2 mm | |
| Assembly | THT | |
| Depth | 18.5 mm | |
| Pin number | 3 pole | |
| Grid | 7.5 mm | |
| Rated current | 48 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
