2626-3101 | WAGO

PCB terminal, 1 pole, pitch 7.5 mm, AWG 24-8, 48 A, push-in cage clamp, gray, 2626-3101

Order No.: 43P9777
EAN: 4055143587266
MPN:
2626-3101
Series: 2626

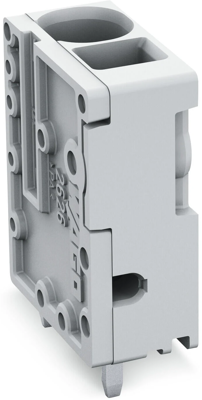

2626-3101 WAGO PCB Terminal Blocks Image 1
2626-3101 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.5589 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.5589 €

PCB terminal, 2626-3101, WAGO

PCB terminal block, 6 mm², pin spacing: 7.5 mm, 1-pole, push-in cage clamp, 6.00 mm², gray.

Features

  • PCB terminal strips with push-in cage clamp connection
  • Push-in termination of solid and ferruled conductors
  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Overvoltage category: III
  • Pollution degree: 2
Technical specifications
Filter Property Value
Contact distance RM 7.5/14
Rated voltage 1 kV
Rated current 48 A
Depth 18.5 mm
Connection push-in cage clamp
Cable cross-section 0.2-10 mm²
Height 28.2 mm
Grid 7.5 mm
Colour gray
Width 91.8 mm
Pin number 1 pole
AWG cross-section AWG 24-8
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
