2616-3102/020-005 | WAGO

PCB terminal, 2 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, red, 2616-3102/020-005

Order No.: 44P7328
EAN: 4066966368956
MPN:
2616-3102/020-005
Series: 2616

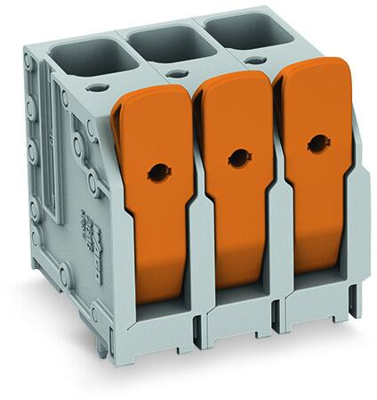

2616-3102/020-005 WAGO PCB Terminal Blocks Image 1

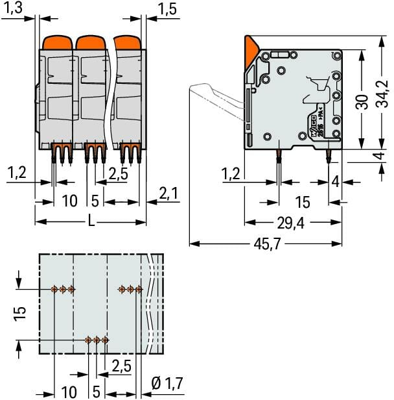

2616-3102/020-005 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
7.5684 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.5684 €

PCB terminal block, 2616-3102/020-005, WAGO

PCB terminal block, lever, 16 mm², Pin spacing 10 mm, 2-pole, Push-in cage clamp, 16.00 mm², red.

Features

  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Colour red
Depth 29.4 mm
AWG cross-section AWG 18-4
Rated current 76 A
Grid 10 mm
Width 22.8 mm
Height 38.2 mm
Cable cross-section 0.75-16 mm²
Pin number 2 pole
Connection push-in cage clamp
Rated voltage 1 kV
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
