PCB terminal, 6 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, blue, 2616-1106/020-006
Unit Price (€ / pc.)
22.6695 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal block, 2616-1106/020-006, WAGO
PCB terminal block, lever, 16 mm², Pin spacing 10 mm, 6-pole, Push-in cage clamp, 16.00 mm², blue.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

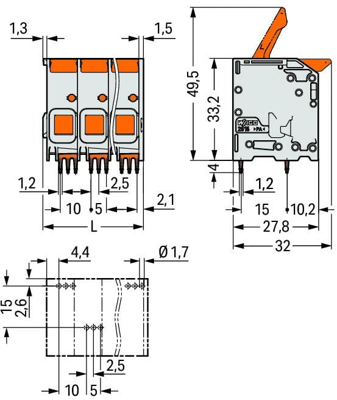

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in cage clamp | |
| Width | 62.8 mm | |
| Colour | blue | |
| Pin number | 6 pole | |
| AWG cross-section | AWG 18-4 | |
| Rated voltage | 1 kV | |
| Assembly | THT | |
| Height | 37.2 mm | |
| Rated current | 76 A | |
| Cable cross-section | 0.75-16 mm² | |
| Grid | 10 mm | |
| Depth | 32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
