2616-1105/020-000 | WAGO

PCB terminal, 5 pole, pitch 10 mm, AWG 4, 76 A, push-in cage clamp, gray, 2616-1105/020-000

Order No.: 09H720
EAN: 4055143668255
MPN:
2616-1105/020-000
Series: 2616

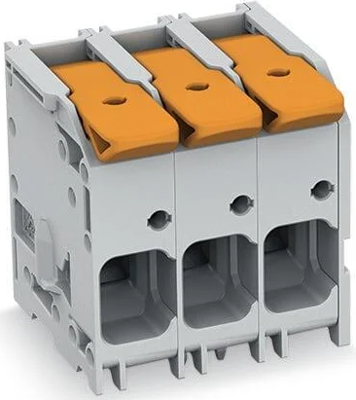

2616-1105/020-000 WAGO PCB Terminal Blocks Image 1

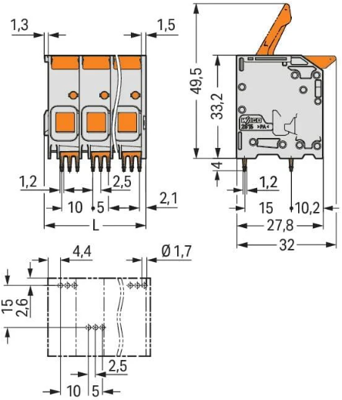

2616-1105/020-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
20.6703 € *
Available: 20 pcs.
Total Price:
20.67 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6703 €
10 pcs.
19.2185 €
50 pcs.
17.6834 €
100 pcs.
16.0888 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal block, 2616-1105/020-000, WAGO

PCB terminal block, lever, 16 mm², Pin spacing 10 mm, 5-pole, Push-in CAGE CLAMP, 16,00 mm², gray.

Features

  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry0
Technical specifications
Filter Property Value
Width 52.8 mm
Grid 10 mm
AWG cross-section AWG 4
Rated current 76 A
Rated voltage 1000 V
Cable cross-section 16 mm²
Colour gray
Pin number 5 pole
Assembly THT
Height 37.2 mm
Depth 32 mm
Connection push-in cage clamp
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
