2616-1103 | WAGO

PCB terminal, 3 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2616-1103

Order No.: 44P7329
EAN: 4066966360615
MPN:
2616-1103
Series: 2616

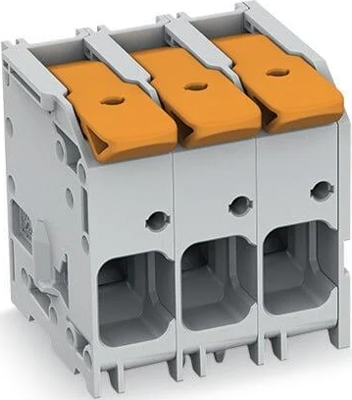

2616-1103 WAGO PCB Terminal Blocks Image 1

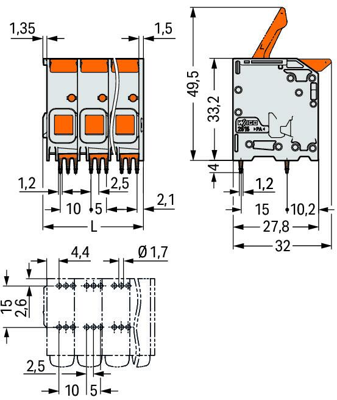

2616-1103 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
10.2935 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.2935 €

PCB terminal block, 2616-1103, WAGO

PCB terminal block, lever, 16 mm², Pin spacing 10 mm, 3-pole, Push-in cage clamp, 16.00 mm², gray.

Features

  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Rated voltage 320 V
Rated current 76 A
Depth 32 mm
Connection push-in cage clamp
Cable cross-section 0.75-16 mm²
Height 37.2 mm
Grid 10 mm
Colour gray
Width 32.8 mm
Pin number 3 pole
AWG cross-section AWG 18-4
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
