2606-1101/000-016 | WAGO

PCB terminal, 1 pole, pitch 7.5 mm, AWG 24-8, 41 A, push-in cage clamp, yellow/green, 2606-1101/000-016

Order No.: 44P6349
EAN: 4066966257137
MPN:
2606-1101/000-016
Series: 2606

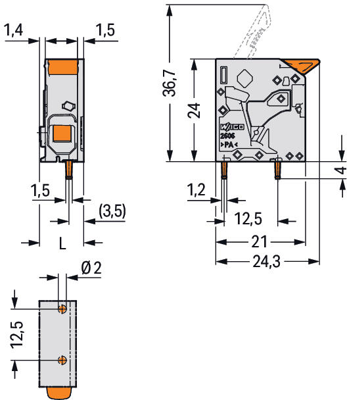

2606-1101/000-016 WAGO PCB Terminal Blocks Image 1

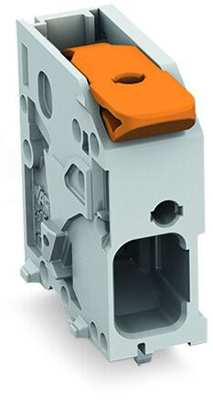

2606-1101/000-016 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9516 €

PCB terminal block, 2606-1101/000-016, WAGO

PCB terminal block, lever, 6 mm², Pin spacing 7.5 mm, 1-pole, Push-in cage clamp, special version, 6.00 mm², green-yellow.

Features

  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Filter Property Value
Grid 7.5 mm
Pin number 1 pole
Height 28 mm
Colour yellow/green
Rated current 41 A
Cable cross-section 0.2-10 mm²
Connection push-in cage clamp
Assembly THT
AWG cross-section AWG 24-8
Depth 24.3 mm
Rated voltage 1 kV
Width 10.35 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
