2604-3503/000-016 | WAGO

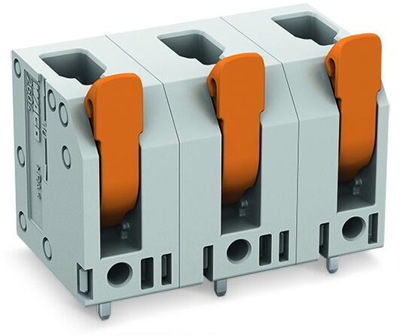

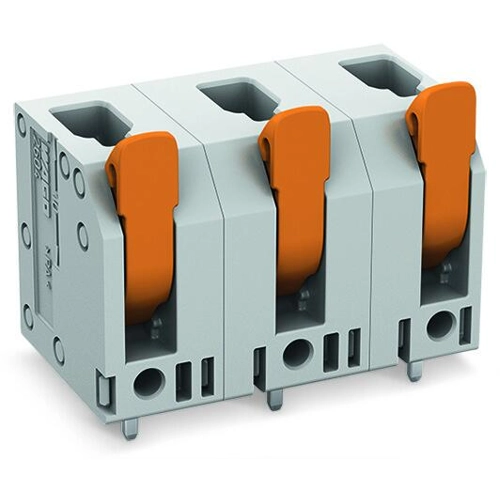

PCB terminal, 3 pole, pitch 11.5 mm, AWG 24-12, 32 A, push-in cage clamp, yellow/green, 2604-3503/000-016
Unit Price (€ / pc.)
4.046 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal block, 2604-3503/000-016, WAGO
PCB terminal block, lever, 4 mm², Pin spacing 11.5 mm, 3-pole, Push-in cage clamp, 4,00 mm², green-yellow.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

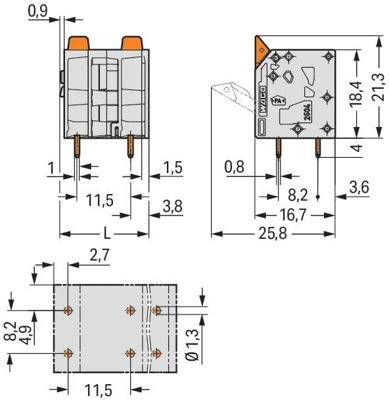

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 11.5 mm | |
| Depth | 16.7 mm | |
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-12 | |
| Rated voltage | 1 kV | |
| Height | 25.3 mm | |
| Assembly | THT | |
| Width | 30.4 mm | |
| Pin number | 3 pole | |
| Colour | yellow/green | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
