PCB terminal, 12 pole, pitch 7.5 mm, AWG 24-12, 32 A, push-in cage clamp, gray, 2604-3312
Unit Price (€ / pc.)
10.4839 € *
Standard delivery time from the manufacturer is: 3 Weeks
PCB terminal, 2604-3312, WAGO
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: black, pin layout: linear pad geometry, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-12 | |
| Colour | gray | |
| Connection | push-in cage clamp | |
| Rated voltage | 1 kV | |
| Cable cross-section | 0.2-4.0 mm² | |

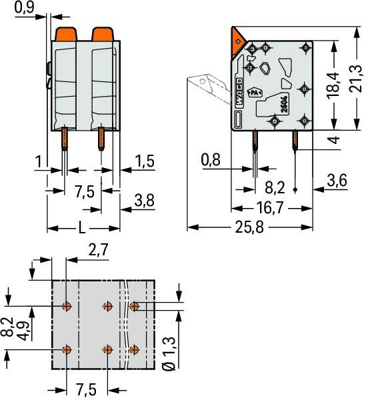

| Width | 89.9 mm | |
| Height | 25.3 mm | |
| Assembly | THT | |
| Depth | 16.7 mm | |
| Pin number | 12 pole | |
| Grid | 7.5 mm | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
