2604-1110 | WAGO

PCB terminal, 10 pole, pitch 5 mm, AWG 24-12, 32 A, push-in cage clamp, gray, 2604-1110

Order No.: 43P9284
EAN: 4055143564373
MPN:
2604-1110
Series: 2604

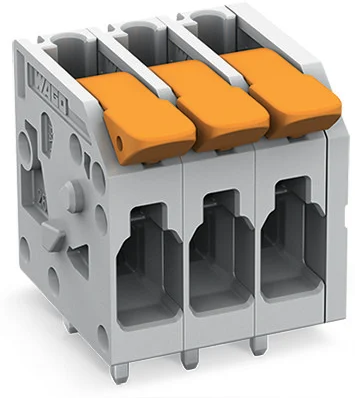

2604-1110 WAGO PCB Terminal Blocks Image 1

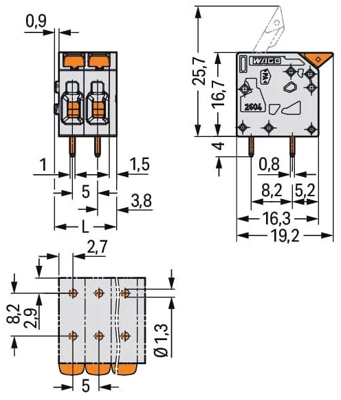

2604-1110 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
7.9492 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.9492 €

PCB terminal, 2604-1110, WAGO

PCB terminal block, lever, 4 mm², pin spacing: 5 mm, 10-pole, push-in cage clamp, 4.00 mm², gray.

Features

  • PCB terminal blocks with push-in cage clamp connection and levers
  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Overvoltage category: III
  • Pollution degree: 2
Technical specifications
Colour gray
Depth 19.2 mm
AWG cross-section AWG 24-12
Rated current 32 A
Grid 5 mm
Width 52.4 mm
Height 20.7 mm
Cable cross-section 0.2-4.0 mm²
Pin number 10 pole
Connection push-in cage clamp
Rated voltage 400 V
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
