2601-3110 | WAGO

PCB terminal, 10 pole, pitch 3.5 mm, AWG 26-14, 17.5 A, push-in cage clamp, gray, 2601-3110

Order No.: 09H838
EAN: 4066966243215
MPN:
2601-3110
Series: 2601

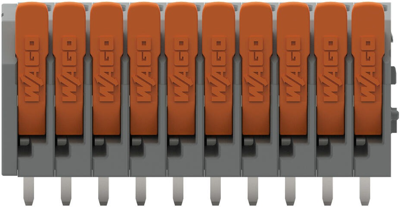

2601-3110 WAGO PCB Terminal Blocks Image 1
2601-3110 WAGO PCB Terminal Blocks Image 2

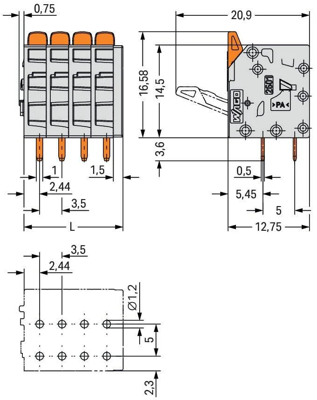

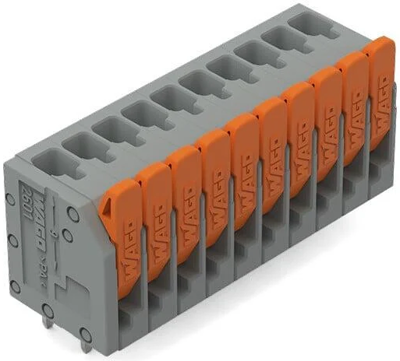

2601-3110 WAGO PCB Terminal Blocks Image 3

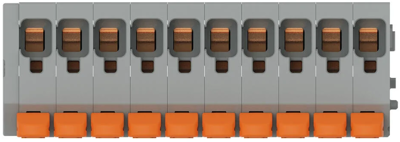

2601-3110 WAGO PCB Terminal Blocks Image 4

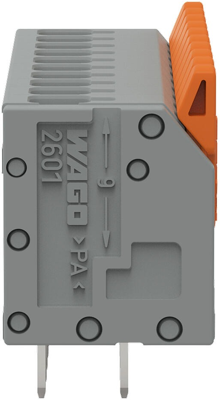

2601-3110 WAGO PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
5.4502 € *
Available in 5 Days: 331 pcs. - if ordered today
Total Price:
5.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.4502 €

PCB terminal block, 2601-3110, WAGO

PCB terminal block with Push-in CAGE CLAMP connection, with operating lever, 26-14 AWG, Pin spacing: 3.5 mm, 10-pole, conductor cross-section: 1.5 mm², color: gray.

Features

  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Filter Property Value
Rated current 17.5 A
Colour gray
Contact distance RM 5/3.5
Width 36.5 mm
Depth 12.8 mm
Connection push-in cage clamp
Height 20.2 mm
AWG cross-section AWG 26-14
Grid 3.5 mm
Rated voltage 320 V
Pin number 10 pole
Cable cross-section 1.5 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
