PCB terminal, 5 pole, pitch 3.5 mm, AWG 26-14, 17.5 A, push-in cage clamp, gray, 2601-3105

Order No.: 09H833
EAN: 4066966242973
MPN:
2601-3105
Series: 2601

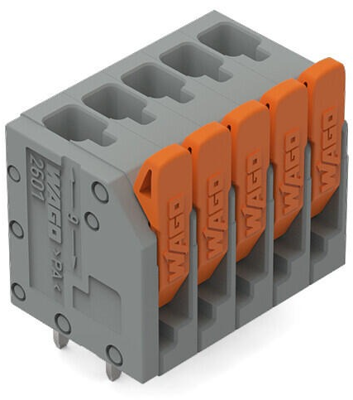

2601-3105 WAGO PCB Terminal Blocks Image 1

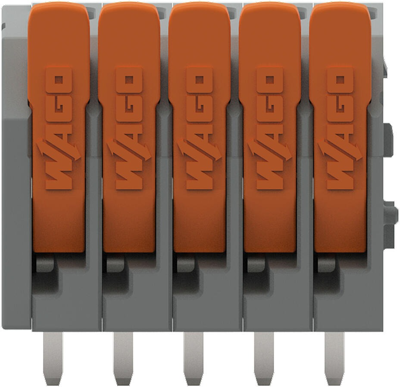

2601-3105 WAGO PCB Terminal Blocks Image 2

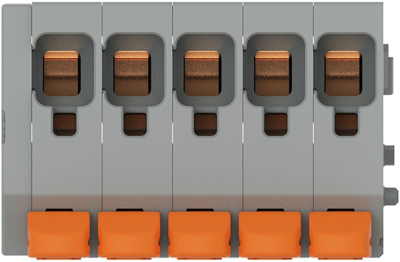

2601-3105 WAGO PCB Terminal Blocks Image 3

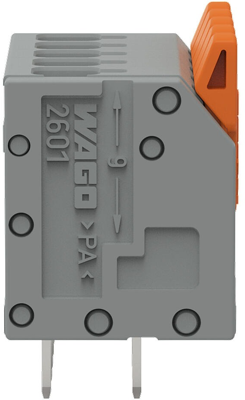

2601-3105 WAGO PCB Terminal Blocks Image 4

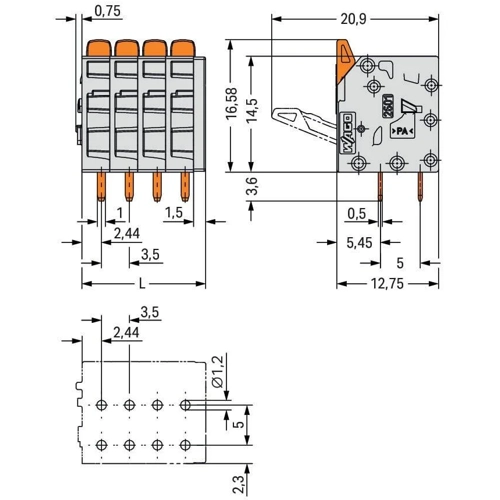

2601-3105 WAGO PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
2.6418 € *
Available: 34 pcs.
Available in 5 Days: 552 pcs. - if ordered today
Total Price:
2.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.6418 €

PCB terminal block, 2601-3105, WAGO

PCB terminal block with Push-in CAGE CLAMP connection, with operating lever, 26-14 AWG, Pin spacing: 3.5 mm, 5-pole, conductor cross-section: 1.5 mm², color: gray.

Features

  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Filter Property Value
Rated voltage 320 V
Rated current 17.5 A
Grid 3.5 mm
Colour gray
Connection push-in cage clamp
Depth 12.8 mm
Pin number 5 pole
Cable cross-section 1.5 mm²
Contact distance RM 5/3.5
AWG cross-section AWG 26-14
Height 20.2 mm
Width 19 mm
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
