257-866 | WAGO

PCB terminal, 1 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, orange, 257-866

Order No.: 43P9129
EAN: 4044918414319
MPN:
257-866
Series: 257

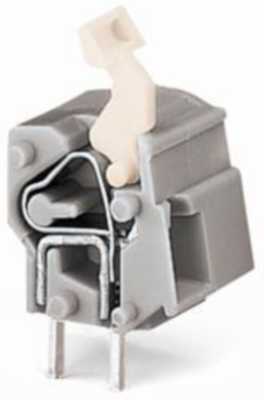

257-866 WAGO PCB Terminal Blocks Image 1

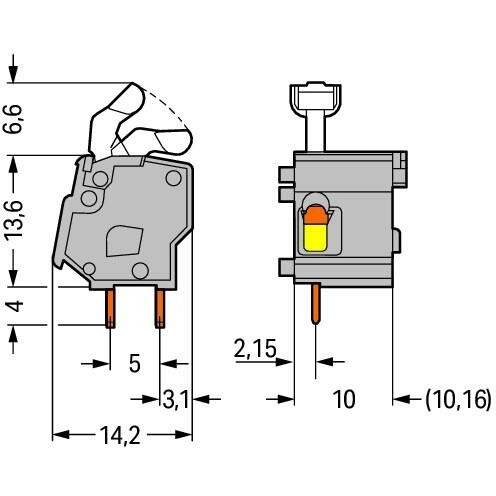

257-866 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.4760 €
50 pcs.
0.4284 €
100 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

Stackable PCB terminal block, 257-866, Wago

Bayable single terminal block with actuating lever handle 2 solder pins/pole 1-pole grid dimension 10/10.16 mm / 0.4 in lever handle angled orange

Technical specifications
Pin number 1 pole
Grid 10 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 10/10.16
Rated current 24 A
Rated voltage 1 kV
Width 12.8 mm
Height 24.2 mm
Depth 14.2 mm
Connection cage clamp
Colour orange
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
