257-842 | WAGO

PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, dark gray, 257-842

Order No.: 08H342
EAN: 4044918413763
MPN:
257-842
Series: 257

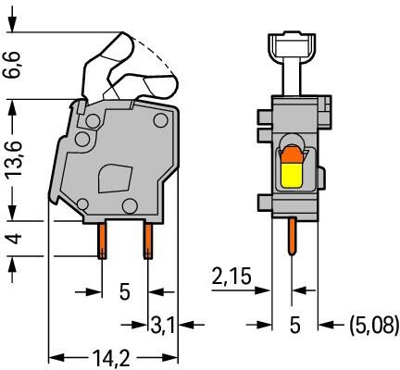

257-842 WAGO PCB Terminal Blocks Image 1

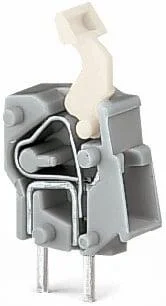

257-842 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 84 pcs.
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
2 pcs.
0.4522 €
10 pcs.
0.4165 €
50 pcs.
0.3808 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

Modular PCB terminal block, Type Wago

In-line single terminals for PCBs, with lever pusher, 2 solder pins/pole, front/side wiring, single-pole, cage clamp terminals, for wiring single-, multi- and fine-wire copper conductors from 0.08 to 2.5 mm², Rated current: 16 A. The grid of terminal block assemblies can be set by compressing (metric grid) or extending (inch grid) the block. The last open terminal can be closed using a snap-on end plate of 1.0 mm thickness. Certifications: UL, CSA, CSM, DEMKO u. a.

With 5.0/5.08 mm grid and angled lever pusher.

Rated voltage to EN (degree of soiling): 250 V (3) or 500 V (2).

Type: 257–842, dark gray

Technical specifications
Filter Property Value
Rated voltage 320 V
Grid 5 mm
Connection cage clamp
Height 24.2 mm
Cable cross-section 0.08-2.5 mm²
Colour dark gray
Contact distance RM 5/5.08
Pin number 1 pole
Rated current 24 A
AWG cross-section AWG 28-12
Depth 14.2 mm
Width 7.8 mm
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
