257-659 | WAGO

PCB terminal, 9 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 257-659

Order No.: 44P9502
EAN: 4017332228299
MPN:
257-659
Series: 257

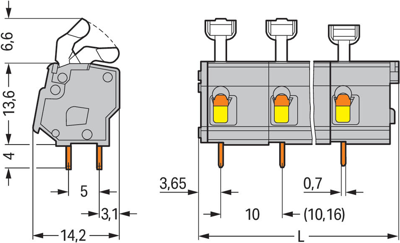

257-659 WAGO PCB Terminal Blocks Image 1

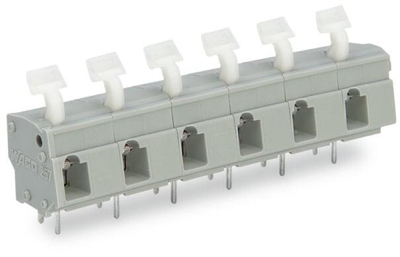

257-659 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.9627 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9627 €

PCB terminal block, 257-659, WAGO

PCB terminal block, push-button, 2.5 mm², Pin spacing 10/10.16 mm, 9-pole, commoning option, 2.5 mm², gray.

Features

  • PCB terminal blocks with push-buttons and CAGE CLAMP connection
  • Ideal for in-the-field wiring thanks to simplified push-button actuation
  • Convenient, tool-free operation
Technical specifications
Filter Property Value
Pin number 9 pole
Grid 10 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 10/10.16
Rated current 24 A
Rated voltage 1 kV
Width 92.9 mm
Height 24.2 mm
Depth 14.2 mm
Connection cage clamp
Assembly THT
Colour gray
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
