257-562 | WAGO

PCB terminal, 12 pole, pitch 7.5 mm, AWG 28-12, 24 A, cage clamp, gray, 257-562

Order No.: 44P9498
EAN: 4044918412841
MPN:
257-562
Series: 257

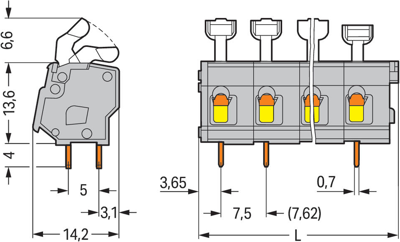

257-562 WAGO PCB Terminal Blocks Image 1

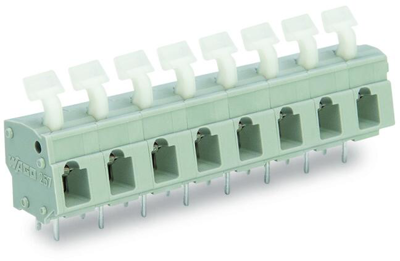

257-562 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.0218 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
5.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.0218 €

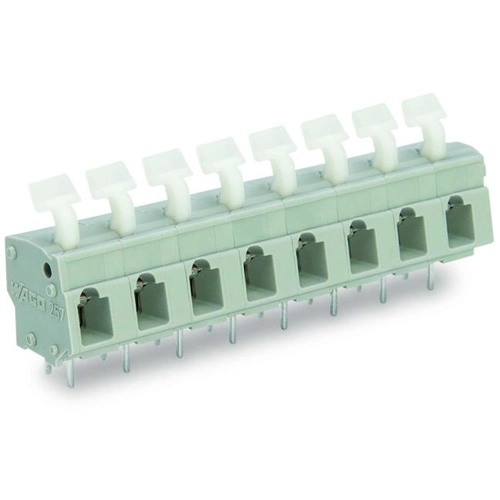

PCB terminal block, 257-562, WAGO

PCB terminal block, push-button, 2.5 mm², Pin spacing 7.5/7.62 mm, 12-pole, commoning option, 2.5 mm², gray.

Features

  • PCB terminal blocks with push-buttons and CAGE CLAMP connection
  • Ideal for in-the-field wiring thanks to simplified push-button actuation
  • Convenient, tool-free operation
Technical specifications
Filter Property Value
Pin number 12 pole
Grid 7.5 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 7.5/7.62
Rated current 24 A
Rated voltage 630 V
Width 92.9 mm
Height 24.2 mm
Depth 14.2 mm
Connection cage clamp
Assembly THT
Colour gray
Logistics
Property Value
Country of origin CH
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
