256-742/332-000 | WAGO
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, dark gray, 256-742/332-000
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4403 €
50 pcs.
0.4046 €
100 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

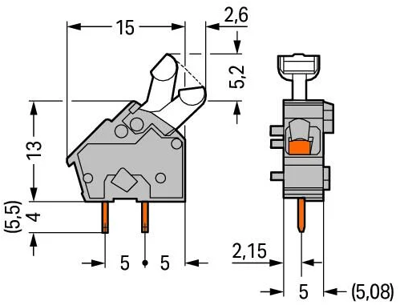

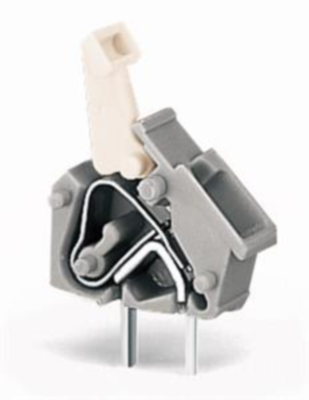

Stackable PCB terminal block, 256-742/332-000, Wago
Bayable single terminal block with actuating pusher 2 solder pins/pole 1-pole Grid dimension 5/5.08 mm / 0.2 in with 5.5 mm long solder pins dark gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | dark gray | |
| Depth | 17.6 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 24 A | |
| Grid | 5 mm | |
| Width | 7.8 mm | |
| Height | 23.7 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Pin number | 1 pole | |
| Connection | cage clamp | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
