256-408/332-000 | WAGO

PCB terminal, 8 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, gray, 256-408/332-000

Order No.: 43P8765
EAN: 4044918934817
MPN:
256-408/332-000
Series: 256

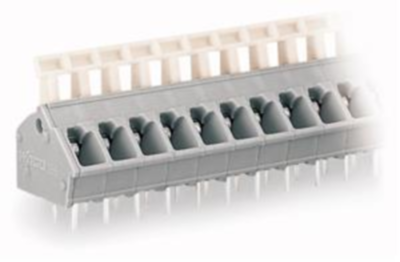

256-408/332-000 WAGO PCB Terminal Blocks Image 1

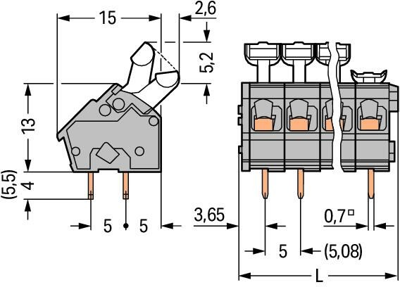

256-408/332-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.5700 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5700 €
10 pcs.
3.2844 €
50 pcs.
2.9869 €
100 pcs.
2.6894 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 256-408/332-000, WAGO

PCB terminal block, push-button, 2.5 mm², pin spacing: 5/5.08 mm, 8-pole, CAGE CLAMP, Solder pin length: 5.5 mm, 2.50 mm², gray.

Features

  • PCB terminal blocks with push-buttons and CAGE CLAMP connection
  • Ideal for in-the-field wiring thanks to simplified push-button actuation
  • Convenient, tool-free operation
Technical specifications
Filter Property Value
Colour gray
Depth 17.6 mm
AWG cross-section AWG 28-12
Rated current 24 A
Grid 5 mm
Width 42.9 mm
Height 23.7 mm
Contact distance RM 5/5.08
Cable cross-section 0.08-2.5 mm²
Pin number 8 pole
Connection cage clamp
Rated voltage 320 V
Logistics
Property Value
Country of origin CH
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
