254-824 | WAGO
PCB terminal, 1 pole, pitch 10 mm, AWG 22-18, 10 A, push-in, blue, 254-824
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 4 Weeks
PCB terminal, 254-824, WAGO
Stackable 2-conductor PCB terminal block, 0.75 mm², pin spacing: 10/10.16 mm, 1-pole, suitable for Ex-i applications, PUSH WIRE, 0.75 mm², blue.
Features
- Modular PCB terminal blocks with PUSH WIRE connection and screwdriver actuation for custom terminal strip assemblies
- Push-in termination of solid and ferruled, fine-stranded conductors
- Test socket for 2 mm Ø test plug

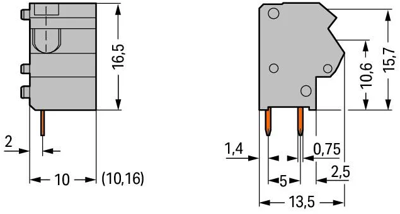

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Depth | 13.5 mm | |
| AWG cross-section | AWG 22-18 | |
| Rated current | 10 A | |
| Grid | 10 mm | |
| Width | 11.7 mm | |
| Height | 20.5 mm | |
| Contact distance | RM 10/10.16 | |
| Cable cross-section | 0.25-0.75 mm² | |
| Pin number | 1 pole | |
| Connection | push-in | |
| Rated voltage | 630 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
