254-653 | WAGO

PCB terminal, 3 pole, pitch 10 mm, AWG 20-12, 24 A, push-in, gray, 254-653

Order No.: 43P8558
EAN: 4044918941037
MPN:
254-653
Series: 254

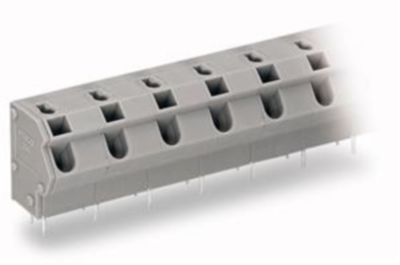

254-653 WAGO PCB Terminal Blocks Image 1

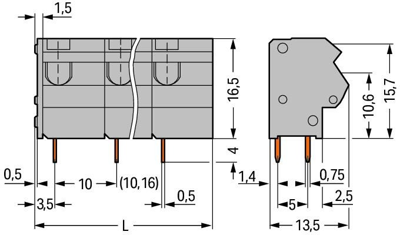

254-653 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.5946 €

PCB terminal, 254-653, WAGO

PCB terminal block, 2.5 mm², pin spacing: 10/10.16 mm, 3-pole, PUSH WIRE, 2.50 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated PUSH WIRE termination
  • Push-in termination of solid and ferruled, fine-stranded conductors
  • Test socket for 2 mm Ø test plug
Technical specifications
Pin number 3 pole
Grid 10 mm
Cable cross-section 0.5-2.5 mm²
AWG cross-section AWG 20-12
Contact distance RM 10/10.16
Rated current 24 A
Rated voltage 1 kV
Width 31.5 mm
Height 19.7 mm
Depth 13.5 mm
Connection push-in
Colour gray
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
