253-113 | WAGO

PCB terminal, 13 pole, pitch 5 mm, AWG 20-14, 17.5 A, push-in, gray, 253-113

Order No.: 43P8494
EAN: 4044918689656
MPN:
253-113
Series: 253

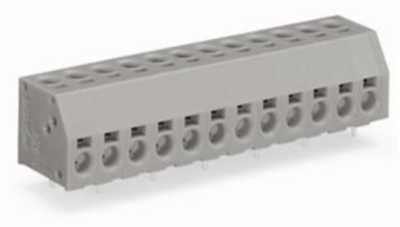

253-113 WAGO PCB Terminal Blocks Image 1
253-113 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.355 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.355 €

PCB terminal, 253-113, WAGO

2-conductor PCB terminal block, 1.5 mm², pin spacing: 5 mm, 13-pole, PUSH WIRE, 1.50 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated PUSH WIRE termination
  • Push-in termination of solid conductors
  • Double entries for power supply and potential distribution
  • Double-conductor connection provides top-entry

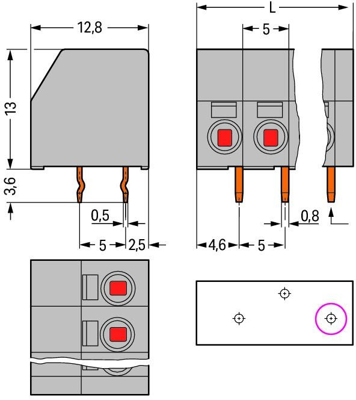

Technical specifications
Colour gray
Depth 12.8 mm
AWG cross-section AWG 20-14
Rated current 17.5 A
Grid 5 mm
Width 67 mm
Height 16.6 mm
Cable cross-section 0.5-1.5 mm²
Pin number 13 pole
Connection push-in
Rated voltage 320 V
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
