250-217/000-012 | WAGO
PCB terminal, 17 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, orange, 250-217/000-012
Unit Price (€ / pc.)
4.1769 € *
Standard delivery time from the manufacturer is: 4 Weeks

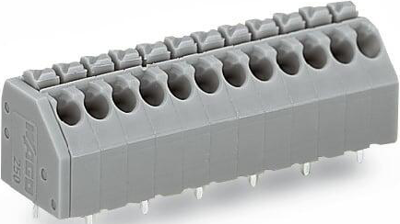

PCB terminal block, 250-217/000-012, WAGO
PCB terminal block, push-button, 1.5 mm², Pin spacing 3.5 mm, 17-pole, Push-in CAGE CLAMP, 1,50 mm², orange.
Features
- Compact terminal strips with push-buttons
- Push-in terminations of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

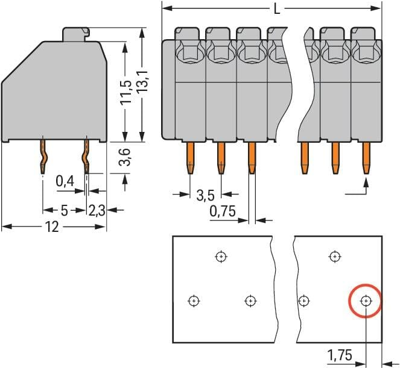

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in cage clamp | |
| Width | 61 mm | |
| Colour | orange | |
| Pin number | 17 pole | |
| AWG cross-section | AWG 24-16 | |
| Rated voltage | 320 V | |
| Assembly | THT | |
| Height | 16.7 mm | |
| Rated current | 8 A | |
| Cable cross-section | 0.2-1.5 mm² | |
| Grid | 3.5 mm | |
| Depth | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
