250-216/000-024 | WAGO

PCB terminal, 16 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, purple, 250-216/000-024

Order No.: 44P9009
EAN: 4066966124408
MPN:
250-216/000-024
Series: 250
250-216/000-024 WAGO PCB Terminal Blocks Image 1
250-216/000-024 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3078 €

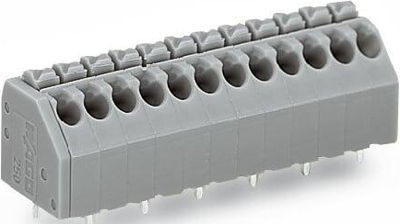

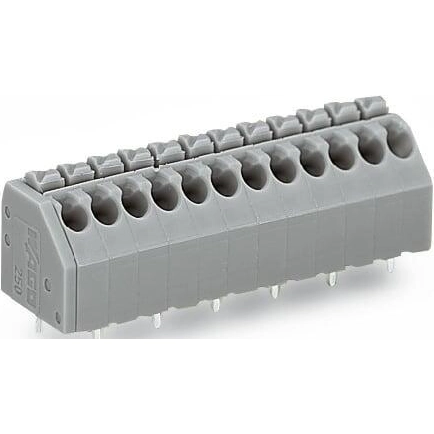

PCB terminal block, 250-216/000-024, WAGO

PCB terminal block, push-button, 1.5 mm², Pin spacing 3.5 mm, 16-pole, Push-in CAGE CLAMP, 1,50 mm², violet.

Features

  • Compact terminal strips with push-buttons
  • Push-in terminations of solid and ferruled conductors
  • Termination/removal of fine-stranded conductors via push-buttons
  • 45° conductor entry angle provides easy, space-saving wiring

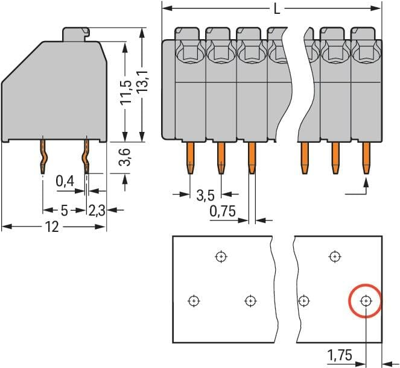

Technical specifications
Colour purple
Depth 12 mm
AWG cross-section AWG 24-16
Rated current 8 A
Grid 3.5 mm
Width 57.5 mm
Height 16.7 mm
Cable cross-section 0.2-1.5 mm²
Pin number 16 pole
Connection push-in cage clamp
Rated voltage 320 V
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
