250-124/000-006 | WAGO

PCB terminal, 24 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, blue, 250-124/000-006

Order No.: 43P8214
EAN: 4044918648134
MPN:
250-124/000-006
Series: 250

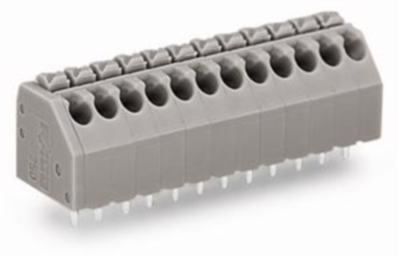

250-124/000-006 WAGO PCB Terminal Blocks Image 1

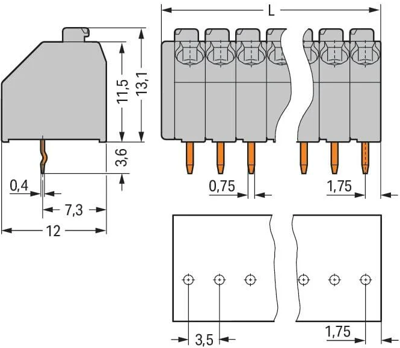

250-124/000-006 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.1166 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.12 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1166 €
10 pcs.
5.6287 €
50 pcs.
5.1170 €
100 pcs.
4.6053 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 250-124/000-006, WAGO

PCB terminal block, push-button, 1.5 mm², pin spacing: 3.5 mm, 24-pole, push-in CAGE CLAMP, 1.50 mm², blue.

Features

  • Compact terminal strips with push-buttons
  • Push-in terminations of solid and ferruled conductors
  • Termination/removal of fine-stranded conductors via push-buttons
  • 45° conductor entry angle provides easy, space-saving wiring
Technical specifications
Colour blue
Depth 12 mm
AWG cross-section AWG 24-16
Rated current 8 A
Grid 3.5 mm
Width 85.5 mm
Height 16.7 mm
Cable cross-section 0.2-1.5 mm²
Pin number 24 pole
Connection push-in cage clamp
Rated voltage 160 V
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
