237-112 | WAGO
PCB terminal, 2 pole, pitch 10 mm, AWG 20-14, 16 A, screw connection, gray, 237-112
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
10 pcs.
0.5117 €
50 pcs.
0.4641 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

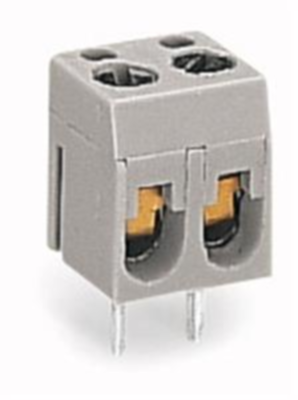

PCB terminal, 237-112, WAGO
PCB terminal block, 2.5 mm², pin spacing: 10 mm, 1-pole, 2.50 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Depth | 9 mm | |
| Contact distance | RM 10/10.16 | |
| Connection | screw connection | |
| AWG cross-section | AWG 20-14 | |
| Rated voltage | 250 V | |
| Height | 11 mm | |
| Width | 10 mm | |
| Pin number | 2 pole | |
| Colour | gray | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
