236-604 | WAGO

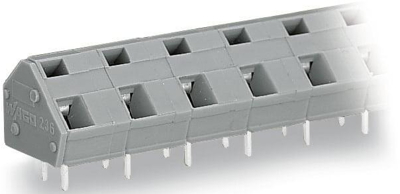

PCB terminal, 4 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 236-604
Unit Price (€ / pc.)
1.6065 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4875 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 236-604, WAGO
PCB terminal block, 2.5 mm², pin spacing: 10/10.16 mm, 4-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options

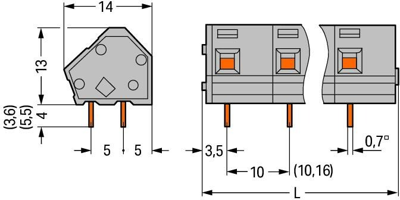

Technical specifications
| Colour | gray | |
| Depth | 14 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 24 A | |
| Grid | 10 mm | |
| Width | 42.3 mm | |
| Height | 17 mm | |
| Contact distance | RM 10/10.16 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Pin number | 4 pole | |
| Connection | cage clamp | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
