236-506/332-009/999-950 | WAGO

PCB terminal, 6 pole, pitch 7.5 mm, AWG 28-12, 16 A, cage clamp, light gray, 236-506/332-009/999-950

Order No.: 44P7994
EAN: 4017332630757
MPN:
236-506/332-009/999-950
Series: 236

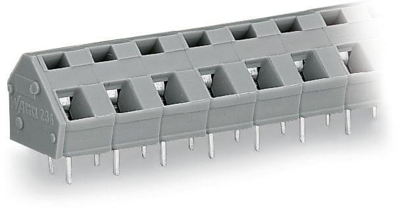

236-506/332-009/999-950 WAGO PCB Terminal Blocks Image 1
236-506/332-009/999-950 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.8675 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.8675 €

PCB terminal block, 236-506/332-009/999-950, WAGO

PCB terminal block, 2.5 mm², pitch 7.5/7.62 mm, 6-pole, suitable for Ex-e, commoning, gray.

Features

  • Operating tools for factory wiring
  • 45° conductor entry angle permits a wide range of applications and wiring options
  • Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
Technical specifications
Pin number 6 pole
Grid 7.5 mm
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28-12
Contact distance RM 7.5/7.62
Rated current 16 A
Rated voltage 275 V
Width 47.3 mm
Height 18.5 mm
Depth 14 mm
Connection cage clamp
Colour light gray
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
