236-405/334-604/997-406 | WAGO

PCB terminal, 5 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, black, 236-405/334-604/997-406

Order No.: 43P7663
EAN: 4055143289924
MPN:
236-405/334-604/997-406
Series: 236
236-405/334-604/997-406 WAGO PCB Terminal Blocks Image 1
236-405/334-604/997-406 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8088 €

THR PCB terminal block, 236-405/334-604/997-406, Wago

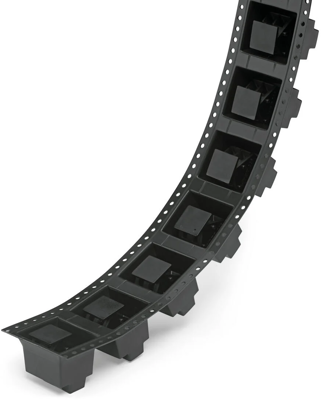

Terminal strips with additional suction pad in the harness according to IEC 60286-3 2 solder pins/pole 5-pole grid dimension 5 mm / 0.197 in reflow technology coil diameter 300 mm 170 pieces per coil black

Technical specifications
Colour black
Depth 14 mm
AWG cross-section AWG 28-12
Rated current 24 A
Grid 5 mm
Width 27.3 mm
Height 16.6 mm
Cable cross-section 0.08-2.5 mm²
Pin number 5 pole
Connection cage clamp
Rated voltage 320 V
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
