236-403/334-604/997-405 | WAGO
PCB terminal, 3 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, black, 236-403/334-604/997-405
Unit Price (€ / pc.)
1.3328 € *
Standard delivery time from the manufacturer is: On Request
THR PCB terminal block, 236-403/334-604/997-405, Wago

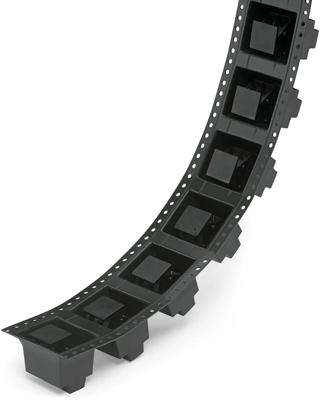

Terminal strips with additional suction pad in the belt according to IEC 60286-3 2 solder pins/pole 3-pole pitch 5 mm / 0.197 in reflow technology coil diameter 300 mm 170 pieces per coil black

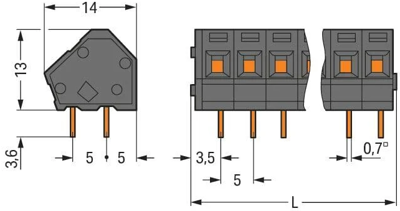

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 24 A | |
| Rated voltage | 320 V | |
| Width | 17.3 mm | |
| Height | 16.6 mm | |
| Depth | 14 mm | |
| Connection | cage clamp | |
| Assembly | THR | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
