236-402/334-604/997-405 | WAGO
PCB terminal, 2 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, black, 236-402/334-604/997-405
Unit Price (€ / pc.)
1.2257 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2257 €
10 pcs.
1.1067 €
100 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
THR PCB terminal block, 236-402/334-604/997-405, Wago

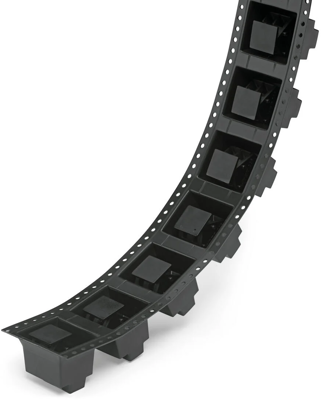

Terminal strips with additional pick-up pad in the strap according to IEC 60286-3 2 solder pins/pole 2-pole grid dimension 5 mm / 0.197 in reflow technology coil diameter 300 mm 170 pieces per coil black

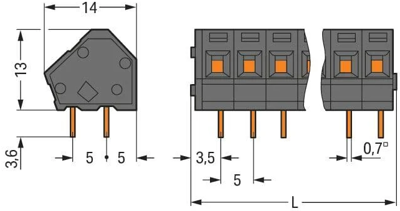

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 14 mm | |
| AWG cross-section | AWG 28-12 | |
| Rated current | 24 A | |
| Height | 16.6 mm | |
| Colour | black | |
| Assembly | THR | |
| Width | 12.3 mm | |
| Grid | 5 mm | |
| Rated voltage | 320 V | |
| Connection | cage clamp | |
| Pin number | 2 pole | |
| Cable cross-section | 0.08-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
