235-762/331-000 | WAGO

PCB terminal, 1 pole, pitch 10 mm, AWG 20-14, 17.5 A, push-in cage clamp, dark gray, 235-762/331-000

Order No.: 44P8717
EAN: 4044918832731
MPN:
235-762/331-000
Series: 235

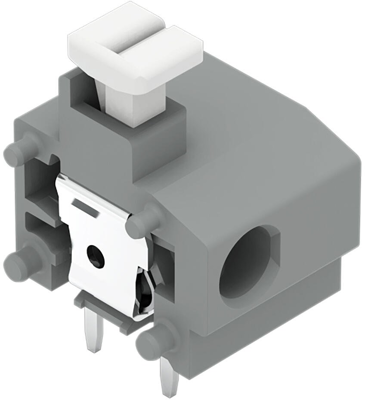

235-762/331-000 WAGO PCB Terminal Blocks Image 1

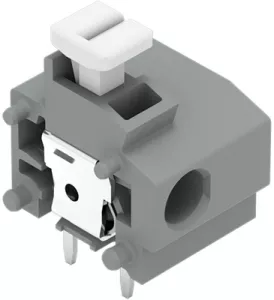

235-762/331-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3927 €

PCB terminal block, 235-762/331-000, WAGO

Stack PCB terminal block, push-button, 1.5 mm², Pin spacing 10/10.16 mm, 1-pole, Push-in CAGE CLAMP, gray.

Features

  • Modular PCB terminal blocks with push-buttons for custom terminal strip assemblies
  • Push-in termination of solid and ferruled conductors
  • Convenient termination/removal of fine-stranded conductors via push-buttons
Technical specifications
Filter Property Value
Pin number 1 pole
Grid 10 mm
Cable cross-section 0.2-1.5 mm²
AWG cross-section AWG 20-14
Contact distance RM 10/10.16
Rated current 17.5 A
Rated voltage 1 kV

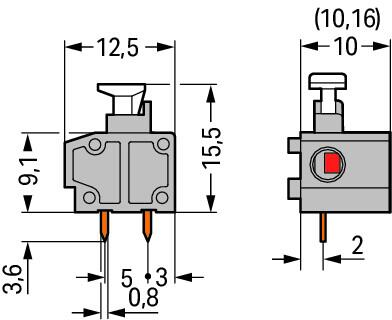

Width 11.5 mm
Height 19.1 mm
Depth 12.5 mm
Connection push-in cage clamp
Assembly THT
Colour dark gray
Logistics
Property Value
Country of origin CH
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
