235-711/331-000 | WAGO

PCB terminal, 1 pole, pitch 5 mm, AWG 24-18, 10 A, push-in cage clamp, gray, 235-711/331-000

Order No.: 43P7551
EAN: 4044918831710
MPN:
235-711/331-000
Series: 235

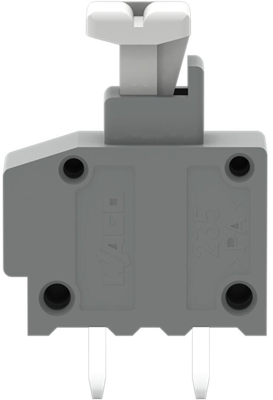

235-711/331-000 WAGO PCB Terminal Blocks Image 1

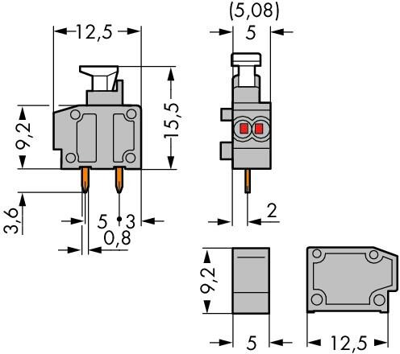

235-711/331-000 WAGO PCB Terminal Blocks Image 2

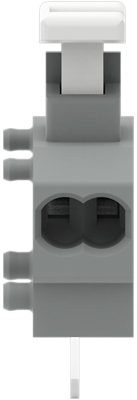

235-711/331-000 WAGO PCB Terminal Blocks Image 3

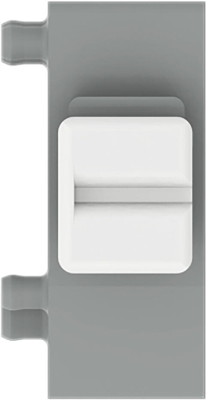

235-711/331-000 WAGO PCB Terminal Blocks Image 4

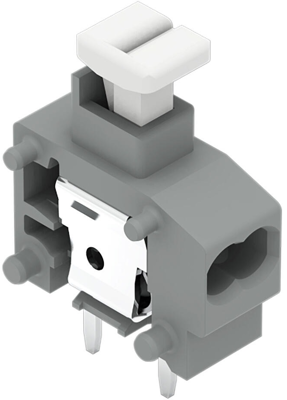

235-711/331-000 WAGO PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3451 €
50 pcs.
0.2975 €
100 pcs.
0.2654 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 235-711/331-000, WAGO

Stackable 2-conductor PCB terminal block, push-button, 0.75 mm², pin spacing: 5/5.08 mm, 1-pole, push wire, 0.75 mm², gray.

Features

  • Double-wire connection for commoning signals
  • Push-in termination of solid conductors
  • Easy conductor removal via push-button
  • Overvoltage category: III
  • Pollution degree: 2
Technical specifications
Pin number 1 pole
Grid 5 mm
Cable cross-section 0.2-0.75 mm²
AWG cross-section AWG 24-18
Contact distance RM 5/5.08
Rated current 10 A
Rated voltage 320 V
Width 6.5 mm
Height 19.1 mm
Depth 12.5 mm
Connection push-in cage clamp
Colour gray
Logistics
Customs tariff number 85369010
Country of origin CH
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
