235-501/333-000 | WAGO
PCB terminal, 1 pole, pitch 7.5 mm, AWG 20-14, 24 A, push-in, gray, 235-501/333-000
Unit Price (€ / pc.)
0.2927 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2927 €
10 pcs.
0.2630 €
100 pcs.
0.2380 €
*incl. VAT plus shipping costs
**Subject to prior sale

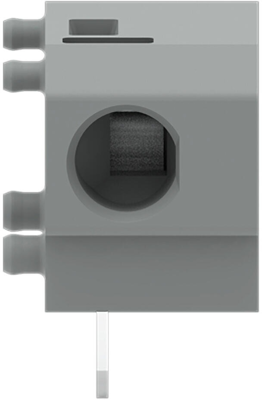

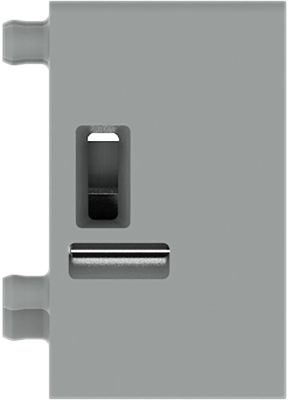

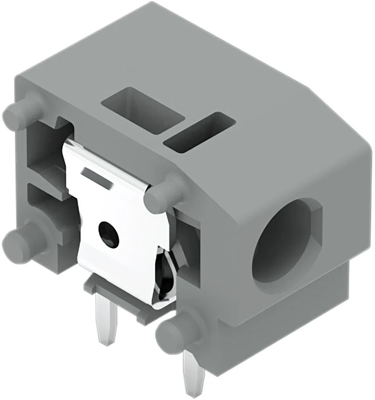

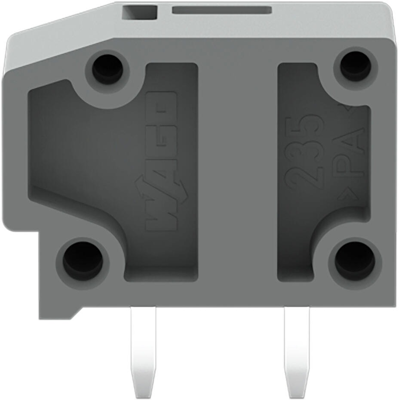

PCB terminal, 235-501/333-000, WAGO
Stackable PCB terminal block, 2.5 mm², pin spacing: 7.5/7.62 mm, 1-pole, PUSH WIRE, with test port, 2.50 mm², gray.
Features
- Low-profile modular PCB terminal blocks with PUSH WIRE connection for custom terminal strip assemblies
- Push-in termination of solid conductors
- Double solder pins for high mechanical stability
- Conductor removal via screwdriver
Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-14 | |
| Width | 9 mm | |
| Colour | gray | |
| Height | 12.8 mm | |
| Contact distance | RM 7.5/7.62 | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Grid | 7.5 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
