233-109 | WAGO
PCB terminal, 9 pole, pitch 2.5 mm, AWG 28-20, 6 A, cage clamp, gray, 233-109
Unit Price (€ / pc.)
3.8675 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.5581 €
50 pcs.
3.2368 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

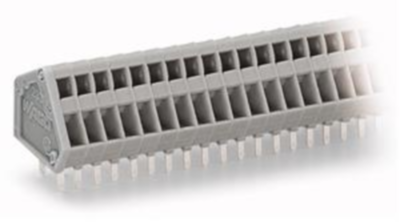

PCB terminal, 233-109, WAGO
PCB terminal block, 0.5 mm², pin spacing: 2.5 mm, 9-pole, CAGE CLAMP, 0.50 mm², gray.
Features
- Compact terminal strips with CAGE CLAMP connection and screwdriver actuation parallel or perpendicular to conductor entry
- Double solder pins for high mechanical stability

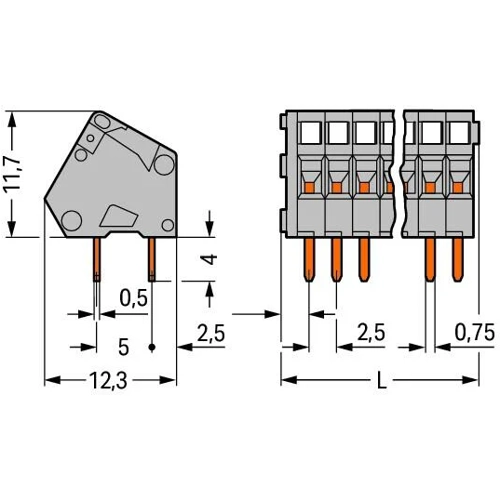

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 12.1 mm | |
| AWG cross-section | AWG 28-20 | |
| Rated current | 6 A | |
| Height | 15.7 mm | |
| Colour | gray | |
| Assembly | THT | |
| Width | 24.8 mm | |
| Grid | 2.5 mm | |
| Rated voltage | 160 V | |
| Connection | cage clamp | |
| Pin number | 9 pole | |
| Cable cross-section | 0.08-0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
