PCB terminal, 2 pole, pitch 2.54 mm, AWG 28-20, 6 A, cage clamp, black, 218-502/000-604/997-403
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: On Request
PCB terminal, 218-502/000-604/997-403, WAGO

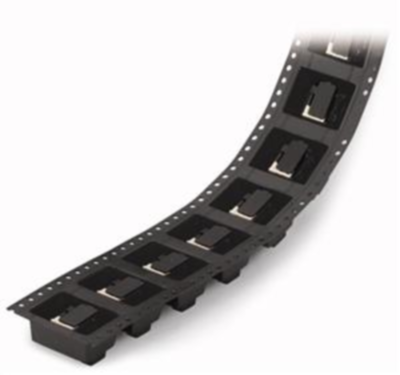

THR PCB terminal block, Locking slides, 0.5 mm², pin spacing: 2.54 mm, 2-pole, CAGE CLAMP, 0.50 mm², black.
Features
- Locking slide-actuated CAGE CLAMP
- Several clamping units can be held open simultaneously.
- Easily terminate stranded conductors in tight spaces
- THR soldering provides integration into SMT assembly and soldering processes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Depth | 13 mm | |
| Connection | cage clamp | |
| AWG cross-section | AWG 28-20 | |
| Rated voltage | 160 V | |
| Height | 10.9 mm | |
| Assembly | THR | |
| Width | 6.58 mm | |
| Pin number | 2 pole | |
| Colour | black | |
| Cable cross-section | 0.08-0.5 mm² | |

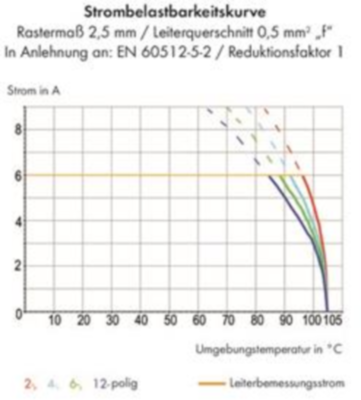

| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
